Toggle밸런스드 버전 FM801 회로 250W * 2 하이파이 파워 앰프 포스트 앰프 골드 실링 튜브, 2N3440/5416/5200 250W/8Ω 500W/4Ω
상품 정보
여러분께 소개할 이 제품은 밸런스드 버전 FM801 회로 250W * 2 하이파이 파워 앰프 포스트 앰프 골드 실링 튜브으로, 여러분의 생활을 더욱 편리하고 풍요롭게 만들어 줄 것입니다. 아래에서 제품의 특징, 사용 방법, 그리고 왜 이 제품이 여러분에게 이상적인지에 대한 상세한 정보를 제공하겠습니다. 정성껏 준비한 상품 설명을 통해, 여러분이 필요로 하는 최적의 선택을 할 수 있도록 도와드릴 것입니다.
Compared with FM711, FM801 has larger output power, better control, and improvements:
1. Increased to 1200w Nippon Steel Transformer
2. Larger case, three-dimensional big circle
3. The output power reaches 250w/8 ohms
4. Single-ended/balanced input switching (added in version 2022)
Line characteristics
FM original parameter core circuit
The left and right channels are completely independent, and there is no electrical connection
Beyond the layout of the original machine, the whole machine is super stable without any noise
This machine has single-ended, balanced 2 inputs, can be connected to 2 pre-stages, using relay switching
Material production

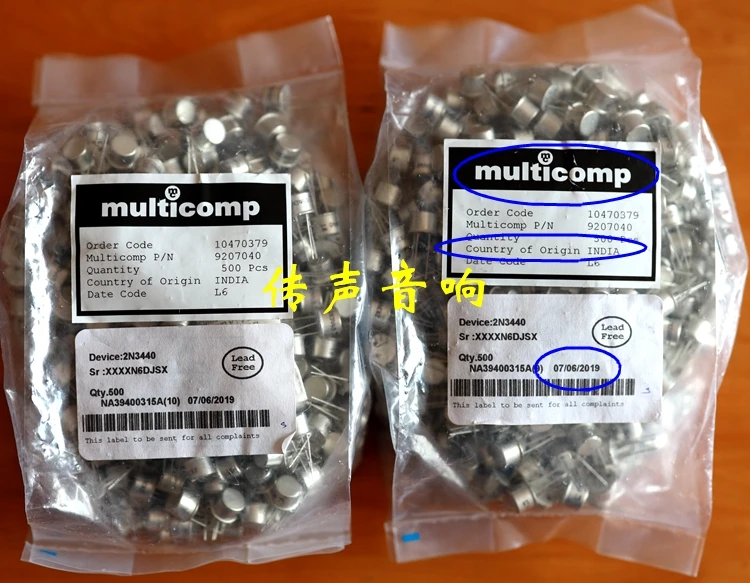

16 new test pairs (<1%) gold-sealed tube 2N3440/5416 produced in recent years
A set of 28 pairs (<1%) of the brand-new Toshiba 5200 made in Japan, which needs to be selected among thousands
Each large tube has a decoupling capacitor and a decoupling electrolytic capacitor in parallel
1200w high quality Nippon Steel transformer, independent winding for left and right channels
80000uF ELNA FOR AUDIO high quality capacitor
Start soft start and perfect speaker protection circuit
CNC precision CNC machine tool processing all aluminum chassis 450*140*370mm
AC110V or AC220V, silver or black optional
index parameter
Whole machine weight: 22KG
Output power: 250w/8 ohms, 500W/4 ohms RMS power, long-term stable output at full power
Static power consumption: 110w
Output midpoint: 1mV
Output noise: 0.2mV S/N ratio: 120DB super low, the lowest among our power amplifiers
FM original parameter core circuit
Beyond the layout of the original machine, the whole machine is super stable without any noise
16 new test paired MOTO gold sealing tube 2N3440/5416
The test is matched with a set of 28 output tubes. The original brand new Toshiba 5200 needs to be selected from thousands of
Each large tube has a decoupling capacitor and a decoupling electrolytic capacitor in parallel
1200w high quality Nippon Steel transformer, independent winding for left and right channels
80000uF ELNA FOR AUDIO high quality capacitors
Start soft start and perfect speaker protection circuit
CNC precision CNC machine tool processing all aluminum chassis 450*140*370mm
AC110V or AC220V, silver or black optional
Whole machine weight: 22KG
Output power: 250w/8 ohms, 500W/4 ohms RMS power, long-term stable output at full power
Output midpoint: 1mV
Output noise: 0.2mV super low, the lowest among our power amplifiersa
The rear panel of FM801 can be connected to 2 front stages, single-ended and balanced input at the same time, which is increased by switch 2022

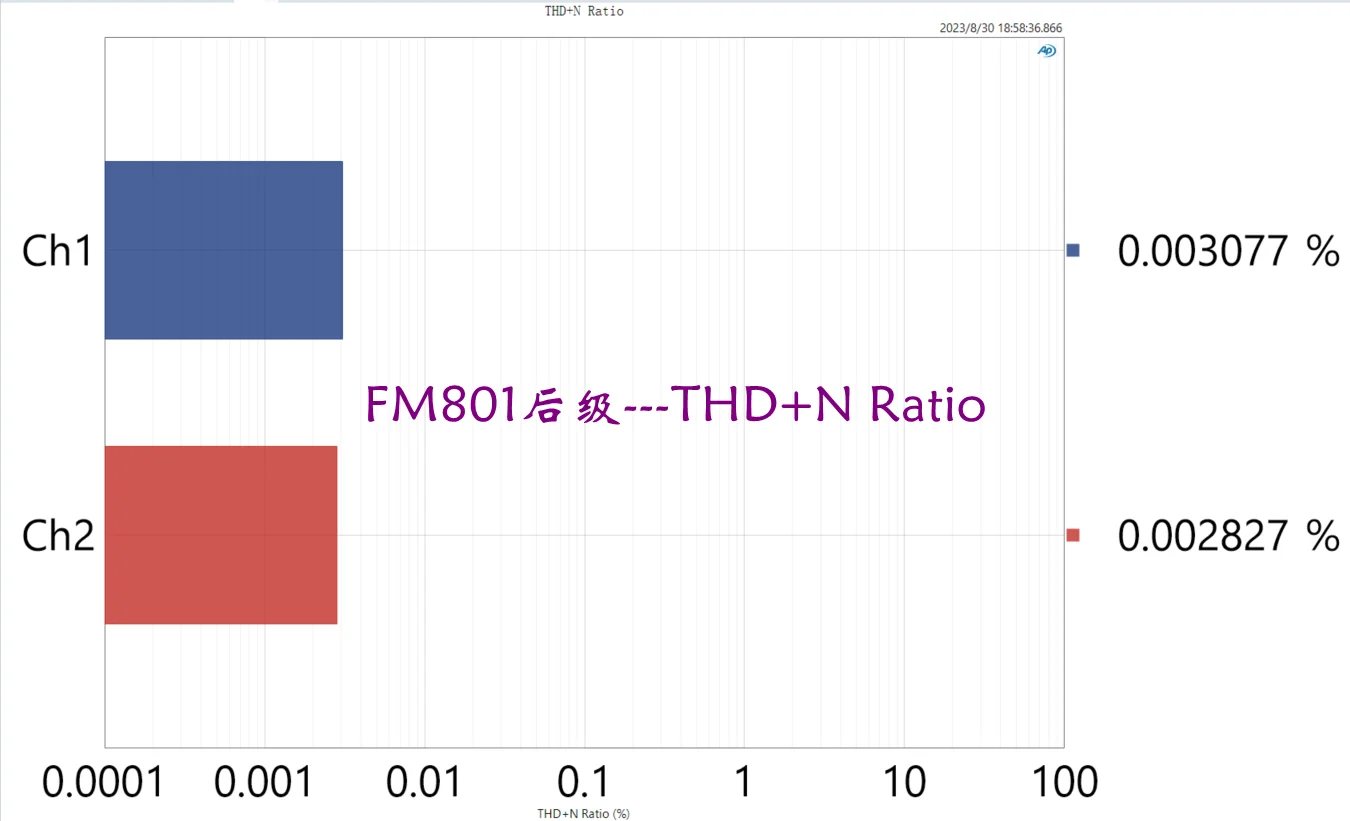

FM801 distortion test output 44.7v 8 ohm load 250w distortion bit 0.005%
